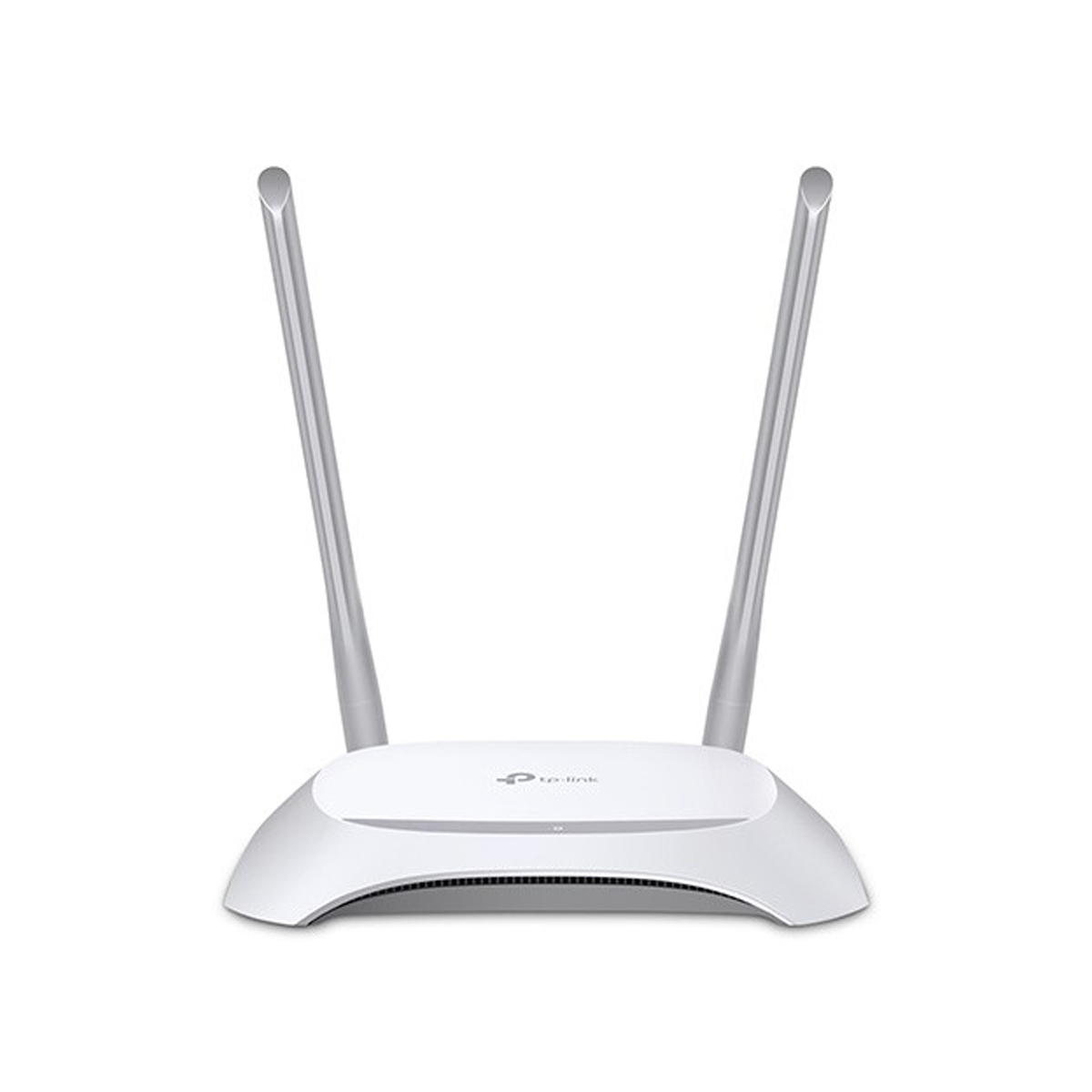

TP Link WR-840N 300Mbps Wireless N Speed Router

• 300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work
• Supports Access Point mode to create a new Wi-Fi access point
• Supports Range Extender mode to boost the existing wireless coverage in your room
• Parental Controls manage when and how connected devices can access the internet
• IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
• Compatible with IPv6 (Internet Protocol version 6)

HARDWARE FEATURES

Interface

4 10/100Mbps LAN PORTS
1 10/100Mbps WAN PORT

Button WPS/RESET Button

External Power Supply 9VDC / 0.6A

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H ) 7.2 x 5.0 x 1.4in.(182 x 128 x 35 mm)

Antenna 2 Antennas

WIRELESS FEATURES

Frequency 2.4-2.4835GHz

Signal Rate

11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Reception Sensitivity

270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power

CE: <20dBm
FCC: <30dBm

Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security 64/128-bit WEP, WPA / WPA2,WPA-PSK / WPA2-PSK

SOFTWARE FEATURES

Quality of Service WMM, Bandwidth Control

WAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Management

Access Control
Local Management
Remote Management
